愛普生是日本有名的頻率元件制造商,專業生產銷售石英晶振,石英晶體振蕩器,貼片晶振,晶體濾波器等.發展至今已是國際有名的晶體元件制造商,致力于為客戶提供高性能,高可靠,高品質晶振產品

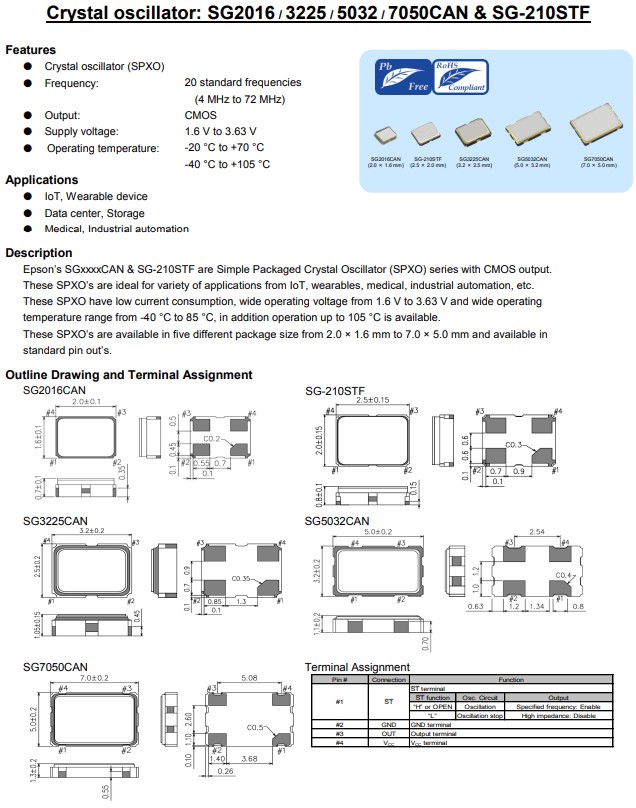

愛普生晶振SG3225CAN，是一款CMOS輸出，石英晶體振蕩器，小體積尺寸3.2x2.5mm四腳貼片晶振，有源晶振，具有低電流消耗、1.6V至3.63V的寬工作電壓和寬工作溫度范圍從-40°C到85°C，此外，最高工作溫度可達105°C。這些SPXO提供從2.0x1.6 mm到7.0x5.0 mm的五種不同封裝尺寸，并提供標準引腳排列。具有超小型，輕薄型，低抖動，低功耗，低電壓，高品質，高精度特點，非常適用于物聯網、GPS定位系統，可穿戴設備、醫療、工業自動化等各種應用。
小體積3225mm有源晶振SG3225CAN非常適用于GPS定位系統,X1G005961003215,CMOS輸出晶振

產品編碼	型號	頻率	貼片晶振	輸出波
X1G005961000115	SG3225CAN	24.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961000215	SG3225CAN	25.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961000315	SG3225CAN	48.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961000415	SG3225CAN	8.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961000515	SG3225CAN	10.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961000615	SG3225CAN	12.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961000715	SG3225CAN	20.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961000815	SG3225CAN	24.576000MHz	3.20x2.50x1.05mm	CMOS
X1G005961000915	SG3225CAN	40.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961001015	SG3225CAN	50.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961001115	SG3225CAN	4.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961001215	SG3225CAN	4.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961001315	SG3225CAN	8.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961001415	SG3225CAN	10.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961001515	SG3225CAN	12.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961001615	SG3225CAN	12.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961001715	SG3225CAN	12.288000MHz	3.20x2.50x1.05mm	CMOS

X1G005961001815	SG3225CAN	12.288000MHz	3.20x2.50x1.05mm	CMOS
X1G005961001915	SG3225CAN	12.288000MHz	3.20x2.50x1.05mm	CMOS
X1G005961002015	SG3225CAN	14.745600MHz	3.20x2.50x1.05mm	CMOS
X1G005961002115	SG3225CAN	14.745600MHz	3.20x2.50x1.05mm	CMOS
X1G005961002215	SG3225CAN	16.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961002315	SG3225CAN	16.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961002415	SG3225CAN	20.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961002515	SG3225CAN	20.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961002615	SG3225CAN	24.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961002715	SG3225CAN	24.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961002815	SG3225CAN	24.576000MHz	3.20x2.50x1.05mm	CMOS
X1G005961002915	SG3225CAN	25.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961003015	SG3225CAN	25.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961003115	SG3225CAN	26.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961003215	SG3225CAN	26.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961003315	SG3225CAN	27.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961003415	SG3225CAN	27.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961003515	SG3225CAN	32.000000MHz	3.20x2.50x1.05mm	CMOS
X1G005961003615	SG3225CAN	32.000000MHz	3.20x2.50x1.05mm	CMOS

小體積3225mm有源晶振SG3225CAN非常適用于GPS定位系統,X1G005961003215,CMOS輸出晶振
3225mm體積非常小的SMD晶振器件,是民用小型無線數碼產品的最佳選擇,小體積的晶振被廣泛應用到,手機藍牙,GPS定位系統,無線通訊集,高精度和高頻率的穩定性能,非常好的減少電磁干擾的影響,是民用無線數碼產品最好的選擇,符合RoHS/無鉛.
